Understanding Plan, Elevation and 3D View

Our first assignment using title block is understand plan, elevation and 3D view drawing.

We were given 5 objects and we will need to draw it out, together with a title block. We will need to to a pencil outline on a cartridge paper and also using pen outline on a tracing paper.

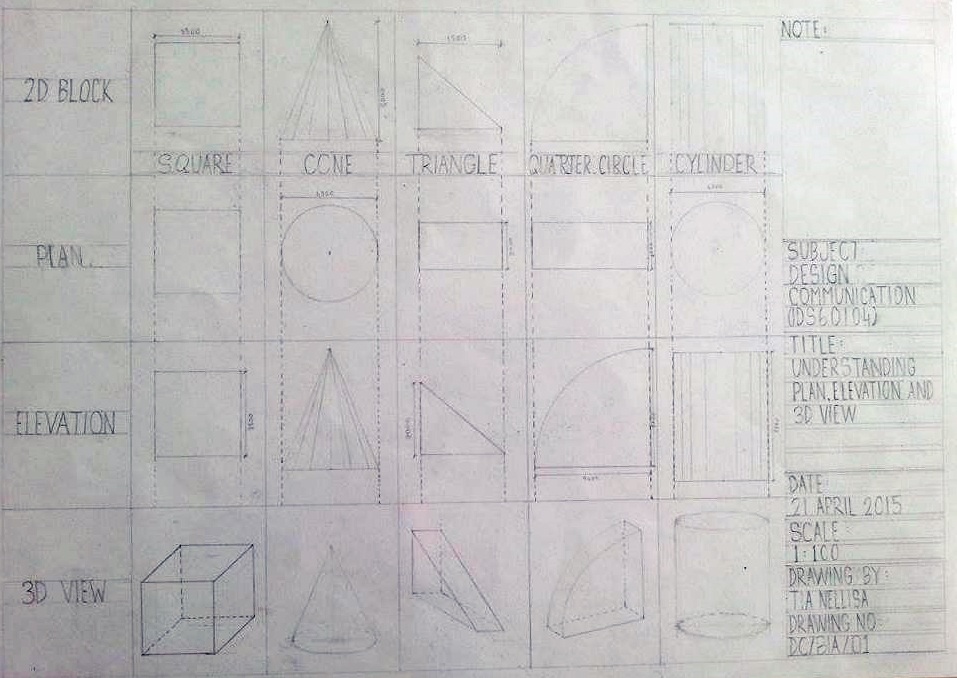

This is the pencil outline on a cartridge paper

This is the pen outline on a tracing paper

Redo of the pen outline:

Reflection:

Even though we were given the objects, we still need to measure how the table box will be, and suprisingly, it was very challenging. I tried many time because some of the object dimension are too big to fit inside the table space. However, in the end, I'd managed to get it right. I had to do a redo because due to the the pen lines looked the same thickness, it need to be in different thickness. The lines also need to be very neat and clean at the same time.
